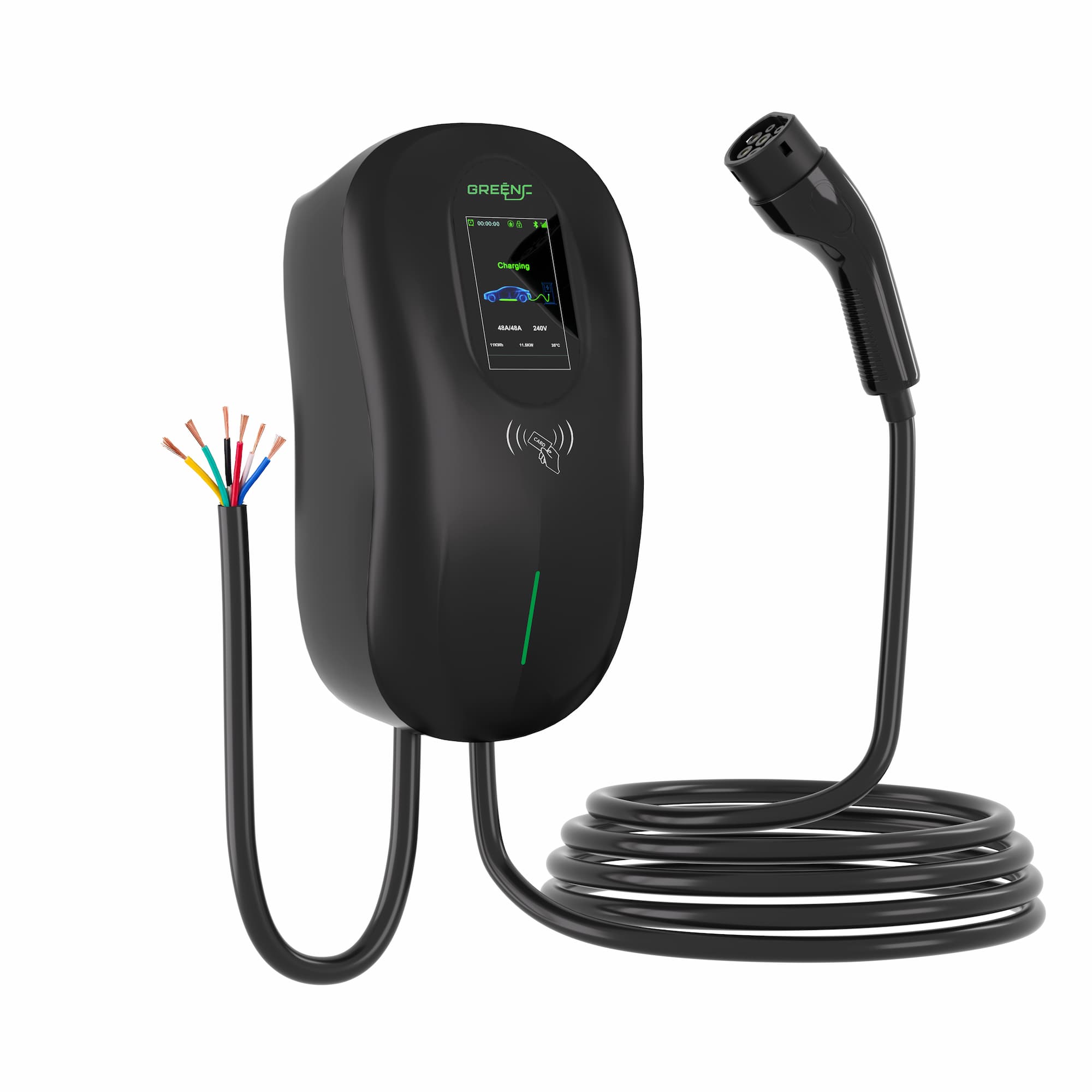

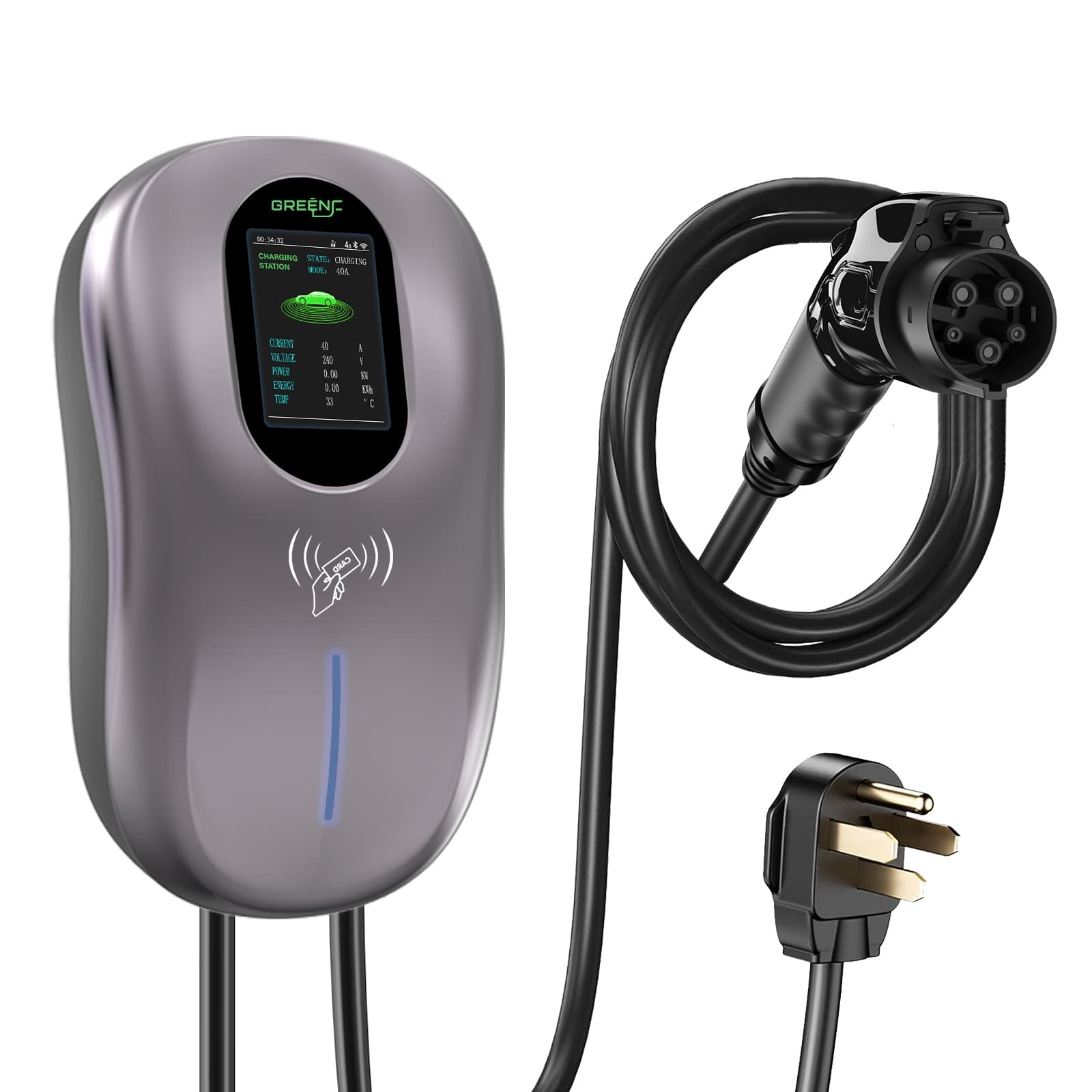

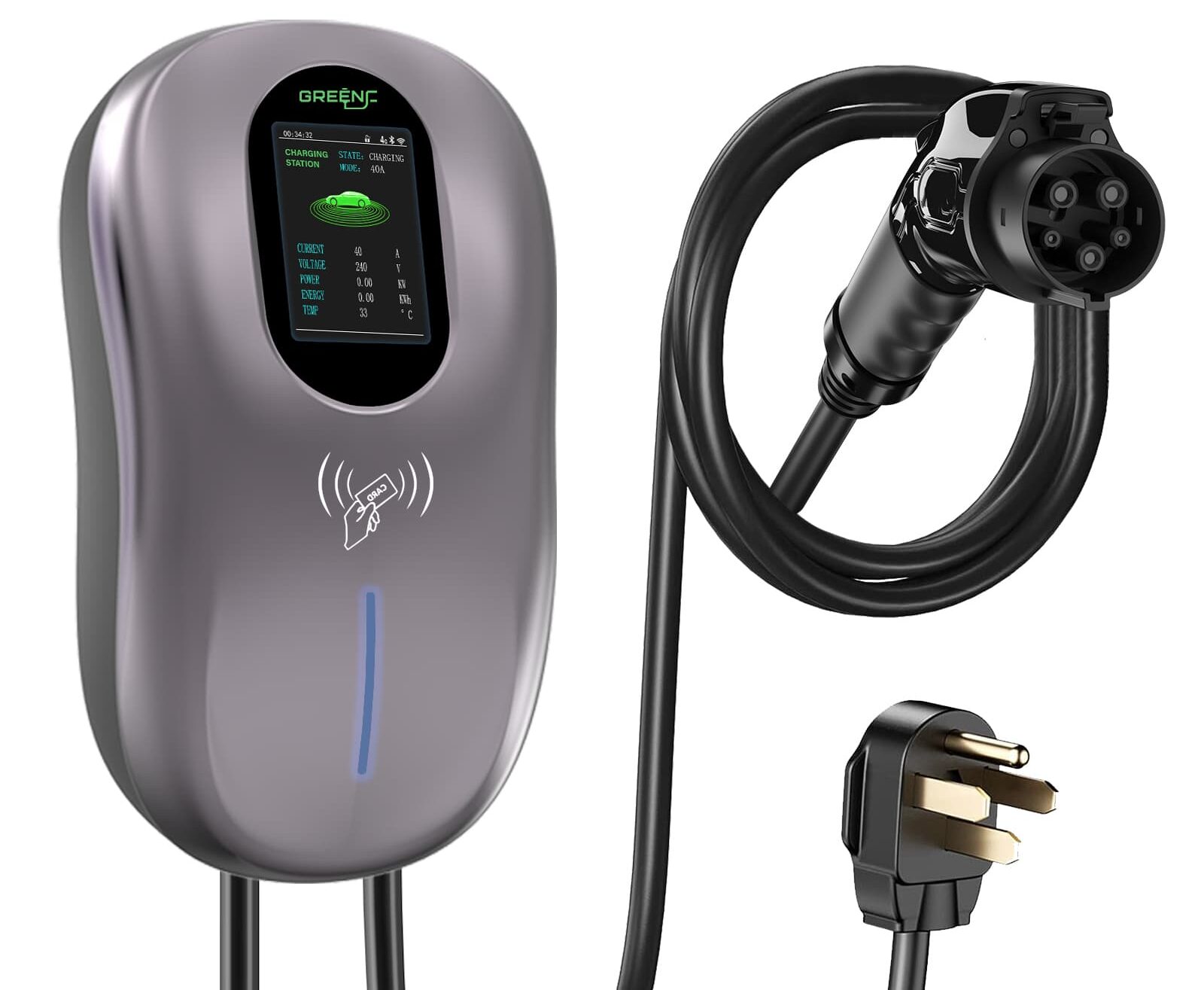

EV Charging Station S02

EV Charging Station S02

  • Current: 32A/40A/48A
  • Output Power: 7kW, 9.6kW, 11.5kW
  • Type1, Type2 and GB/T optional
  • Wall-mounted or Pedestal-mounted

The EV charging station S02  is sleek and aesthetical design, compectitive price, up to 48 amps is ideal for easier and faster home and business charging experiences. It’s customized for Type1, Type2 or GB/T requested.

Product Highlights:

  1. Charge Faster: with 11.5kW of available power at 48 amps.
  2. Flexible Installation: weatherproof enclosure rated for indoor or outdoor installation, include a 5M charging cable to easily reach your EV.
  3. Compatibility: suitable for almost all electric vehicles(EVs) on the road today.
  4. High-definition: colorful digitals display on screen, check charging info clearly and easily.

Current

32A

40A

48A

Power

7kW

9.6kW

11.5kW

Voltage

AC 110-240V

AC 110-240V

AC 110-240V

User Interface

LCD display (4.3inch)+LED indicator

Ground Fault Detection

CCID 20(US)

Connectivity

play and plug, RFID, WIFI( APP)

Charging Connector

Type 1 plug and 5M charging cable (customized length or color)

Standard

SAE J1772

Installation

Wall-mounted/ Pole-mounted

Certifications

FCC, ETL

Product Dimension

Charging plug: 210*69*62mm, Control box: 220*130*385mm

Protection Grade

Charging plug: IP65

Control box: IP65

Operating Temperature

-35°C to 55°C

Case Material

Thermoplastic ABS+PC (flame retardant grade UL94-V0)

Performance and Safety

Over voltage protection, Under voltage protection, Over load protection,

Leakage protection, Ground protection, Over temperature protection (85°C),

Lightning protection, Short circuit protection, Flame retardant.
