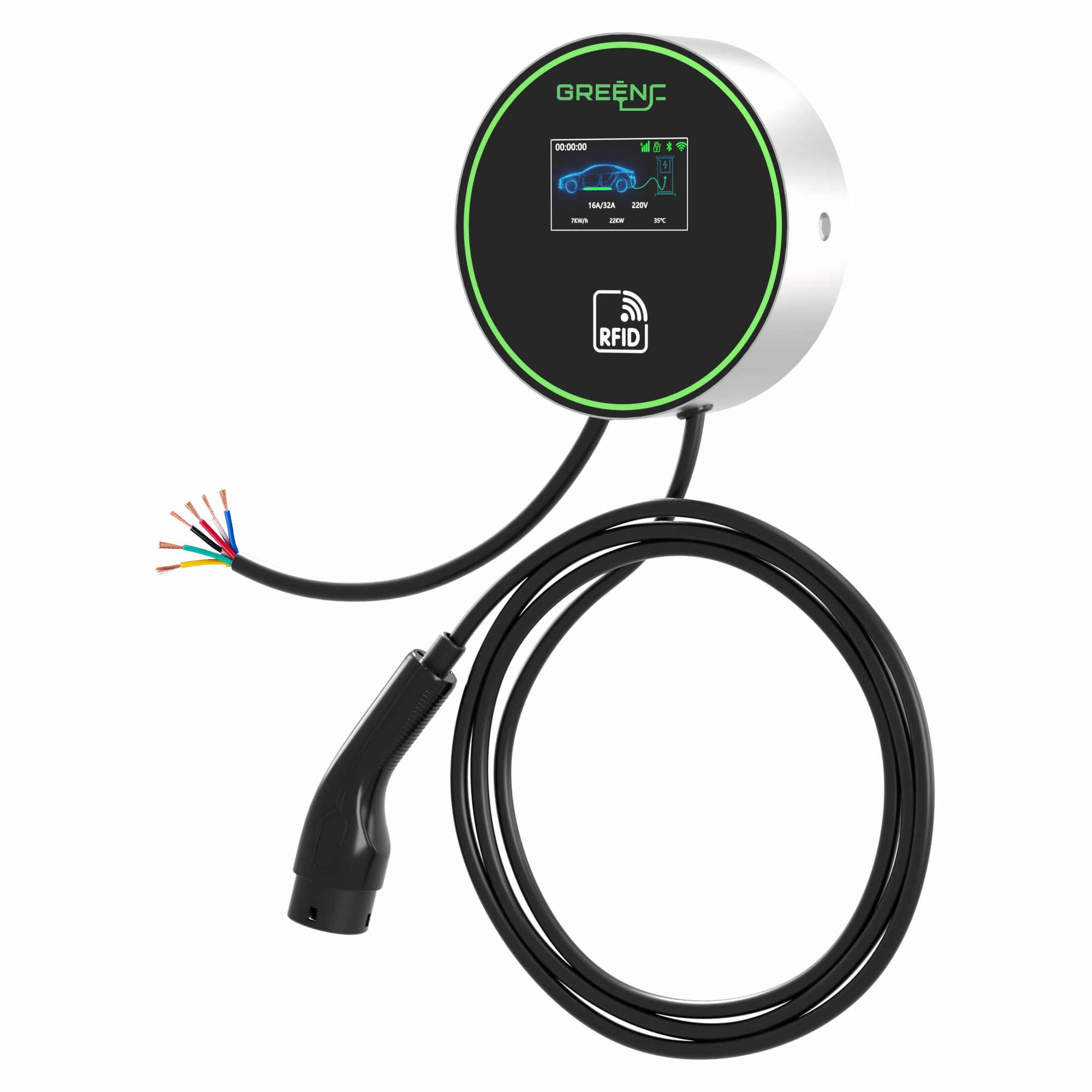

Product Highlights:
- Robust and Waterproof Shell. With a rugged outer shell, this charger offers durability and excellent water resistance, perfect for outdoor installation and usage.
- LCD Visibility. Featuring a color LCD display, the charger provides real-time charging status for effortless user monitoring
- Real-time Temperature Tracking. The charger actively monitors real-time charging temperature, promptly halting current if limits are surpassed, ensuring safe and efficient charging
- Flexible Installation. It suitable for wall-mounted and column-mounted installation, depends on which scenarios you need.
- Security Mechanism. The charger boasts an array of safety attributes safeguarding both charger and EV. These comprise overload, short-circuit, and over-voltage protection for enhanced security.
Mold Number | S01US32A | S01US40A | S01US48A | S01EU7K | S01EU11K | S01EU22K |
Current | 32A | 40A | 48A | 32A 1 Phase | 16A 3Phase | 32A 3Phase |
Power | 7kW | 9.6kW | 11.5kW | 7kW | 11kW | 22kW |
Voltage | AC 110V-240V | AC 110-240V | AC 110-240V | AC 220-250V | AC 380-480V | AC 380-480V |
Charging Interface | Type1 plug+5m cable or customize | Type1 plug+5m cable or customize | Type1 plug+5m cable or customize | Type2 plug+5m cable or customize | Type2 plug+5m cable or customize | Type2 plug+5m cable or customize |
Case Material | Aluminum+Thermoplastic (flame retardant grade UL94-V0) | |||||
User Interface | LED indicator, LCD display (4.3inch) | |||||
Standard | SAE J1772/ IEC 62196-2 | |||||
Connectivity | Play&plug/APP/RFID | |||||
Installation | Wall-mounted/ Pole-mounted | |||||
Certifications | CE, RoHS, FCC, ETL | |||||
Product Dimension | Control box: 250x250x60mm | |||||
Protection Grade | Charging plug: IP65 Control box: IP65 | |||||
Operation Temperature | -35°C to 55°C | |||||
Performance and Safety | Over voltage protection, Under voltage protection, Over load protection, Leakage protection, Ground protection, Over temperature protection (85°C), Lightning protection, Short circuit protection, Flame retardant. |
