Product Highlights:
- Comfortable Charging Experience. Effortlessly convenient and highly portable. Charge your electric vehicle anywhere, anytime.
- Powerful Feature. The EV charger designed for durability, featuring a robust and weather-resistant for outdoor conditions use.
- Intelligent Chip. Advanced chip auto-fixes common charging problems, guaranteeing consistent and dependable operation.
Mold Number | EV16A02EU | ||
Adjustable Current | 16A(8/10/13/16A) | ||
Power | 3.5kW | ||
Cable Specification | 3*2.5mm²+1*0.5mm² TPU OD: 10.8 mm | ||
Case Material | Thermoplastic (flame retardant grade UL94-V0) | ||
Voltage | 220-250 V | ||
User Interface | LED indicator, LCD display (2.4 inch) | ||
Standard | IEC 62196-2 | ||

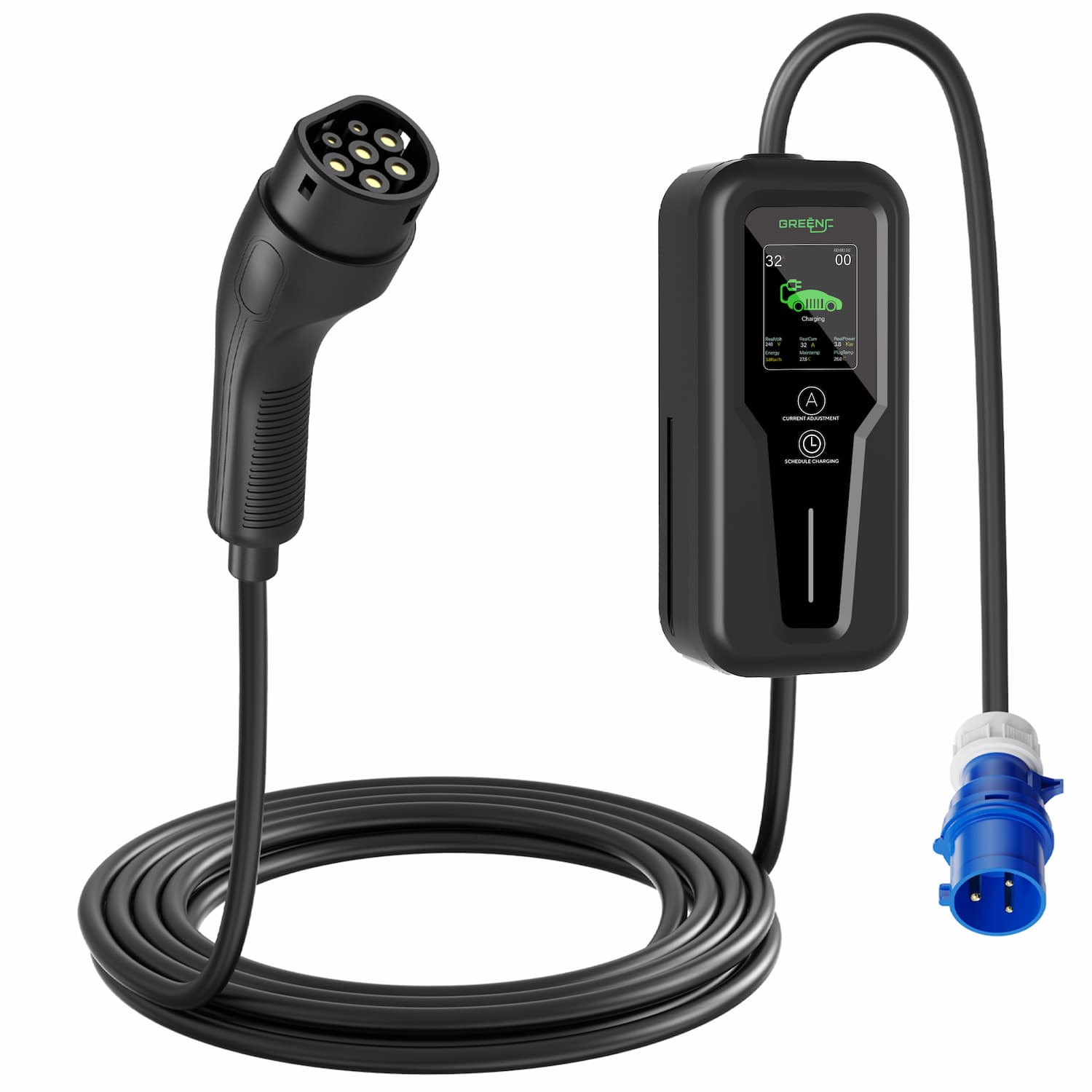

Charging Interface | IEC 62196-2 plug+5m cable (customize cable length or color) | ||
Product Dimension | Plug: 210*69*62mm Control box: 218x100x60mm | ||
Protection Grade | IP65 | ||
Operating Temperature | -35°C to 55°C | ||
Current Protection | 30mA for AC and 6mA for DC faults(Type A +6) | ||
Performance and Safety | Over voltage protection, Under voltage protection, Over load protection, Leakage protection, Ground protection, Over temperature protection(85°C), Lightning protection, Short circuit protection, Flame retardant. | ||
